DediProg EM100Pro-G3 SPI NOR Flash Emulator

EM100Pro-G3 is an SPI NOR Flash emulator that seamlessly integrates with high-speed DRAM memory, ensuring optimal code updating performance. Developed in collaboration with leading SPI NOR Flash suppliers, this tool is designed to emulate the behavior of both current and next-generation SPI NOR Flash devices.

This emulator significantly improves productivity by swiftly downloading firmware code or data, even for high-density applications of up to 1Gbit. Additionally, it offers a valuable "SPI BUS Analyzer" feature that captures and logs all SPI commands and data on the SPI bus, facilitating the debugging process.

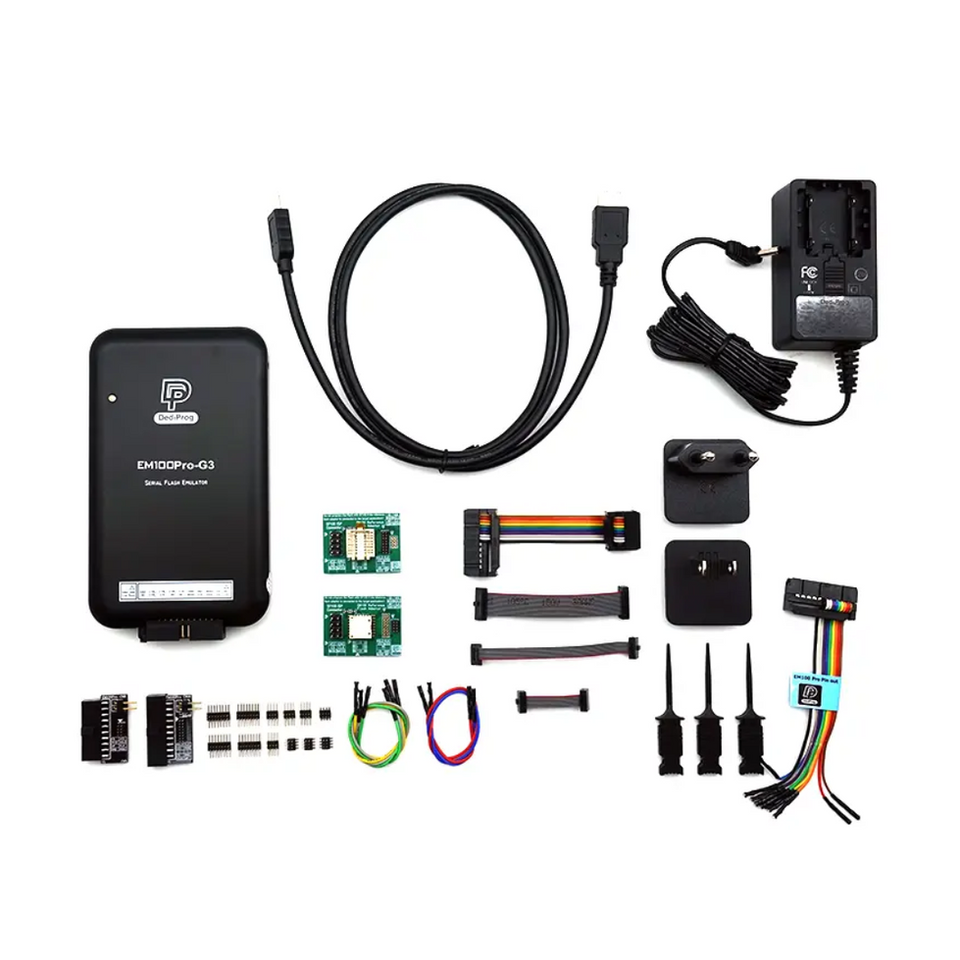

In the package:

• EM100Pro-G3 x 1
• USB 2.0 100cm Cable (A Male -C Male) x 1
• Power Adapter (Including US and EU plugs) x 1
• 2.54mm 2x10 to 2.54mm 2x5 cable x 1
• 1.27mm 2x4 to 1.27mm 2x4 cable x 1
• 1.27mm 2x4 to 1.27mm 2x4 cable 2.5cm x 1
• 1.27mm 2x8 to 1.27mm 2x8 cable x 1
• 2.54mm 2x10 to 1.27mm 2x4 SO8 connection adaptor x 1
• 2.54mm 2x10 to 1.27mm 2x8 SO8 connection adaptor x 1
• 12cm EM100Pro split cable with grabber clip x 1
• 1.27mm 2x8 SMT male header  (10.3mm) x 4
• 1.27mm 2x4 SMT male header (6.0mm) x 4
• 1.27mm 2x4 SMT male header (10.3mm) x 4
• 15cm single wire with 2.54mm Dupont head x 5
• EM100Pro Reference Flash Adaptor (SO8W) x 1
• EM100Pro Reference Flash Adaptor (SO16W) x 1
• Grabber Clip x 2
